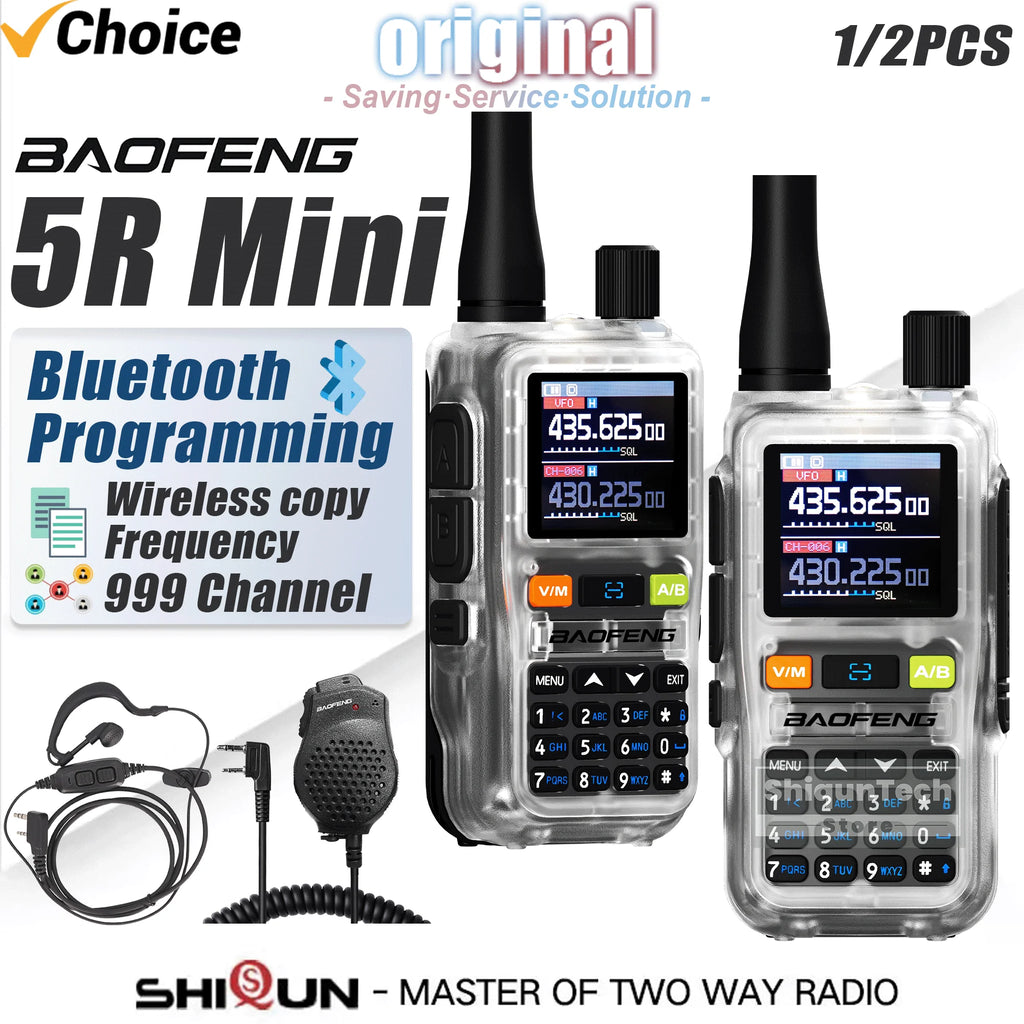

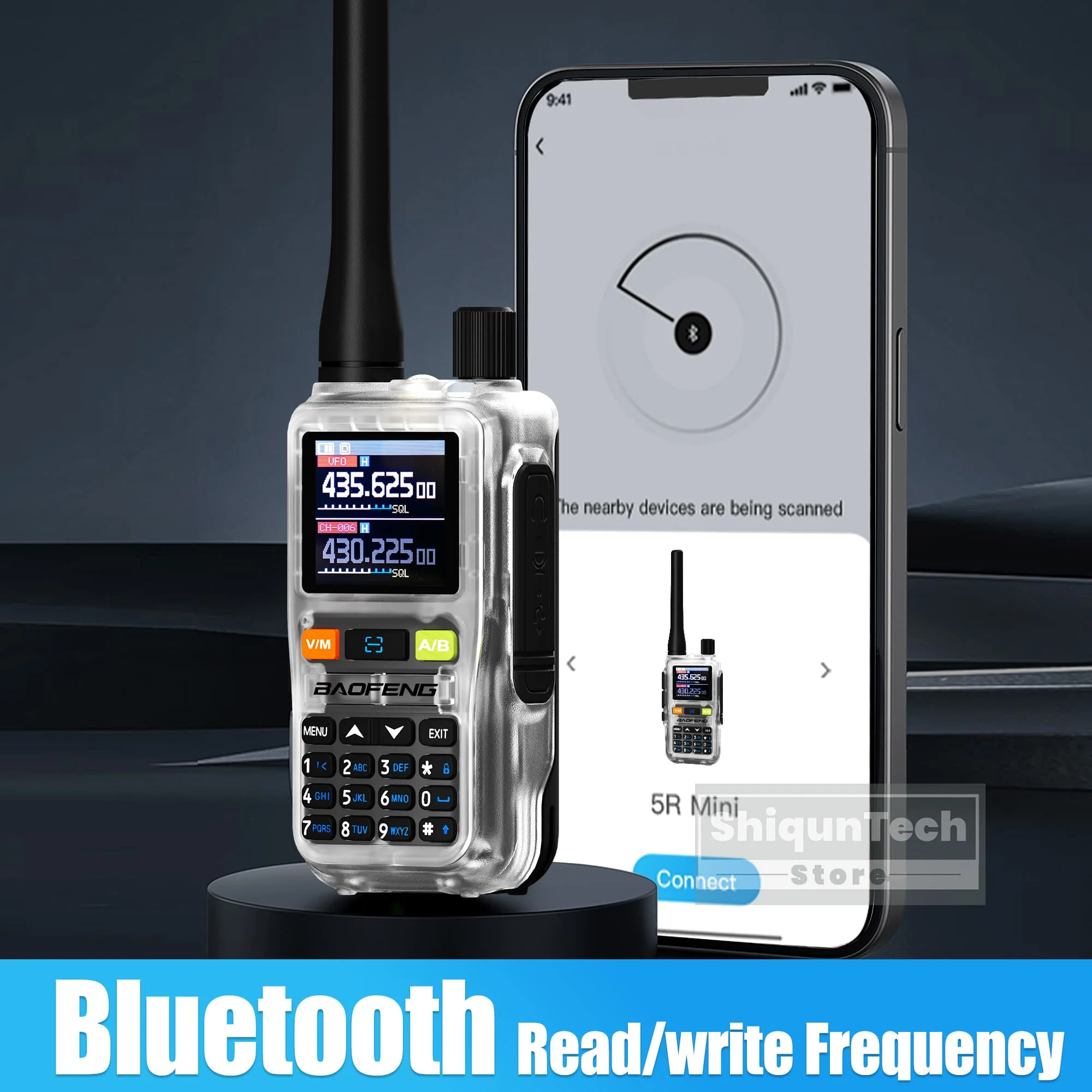

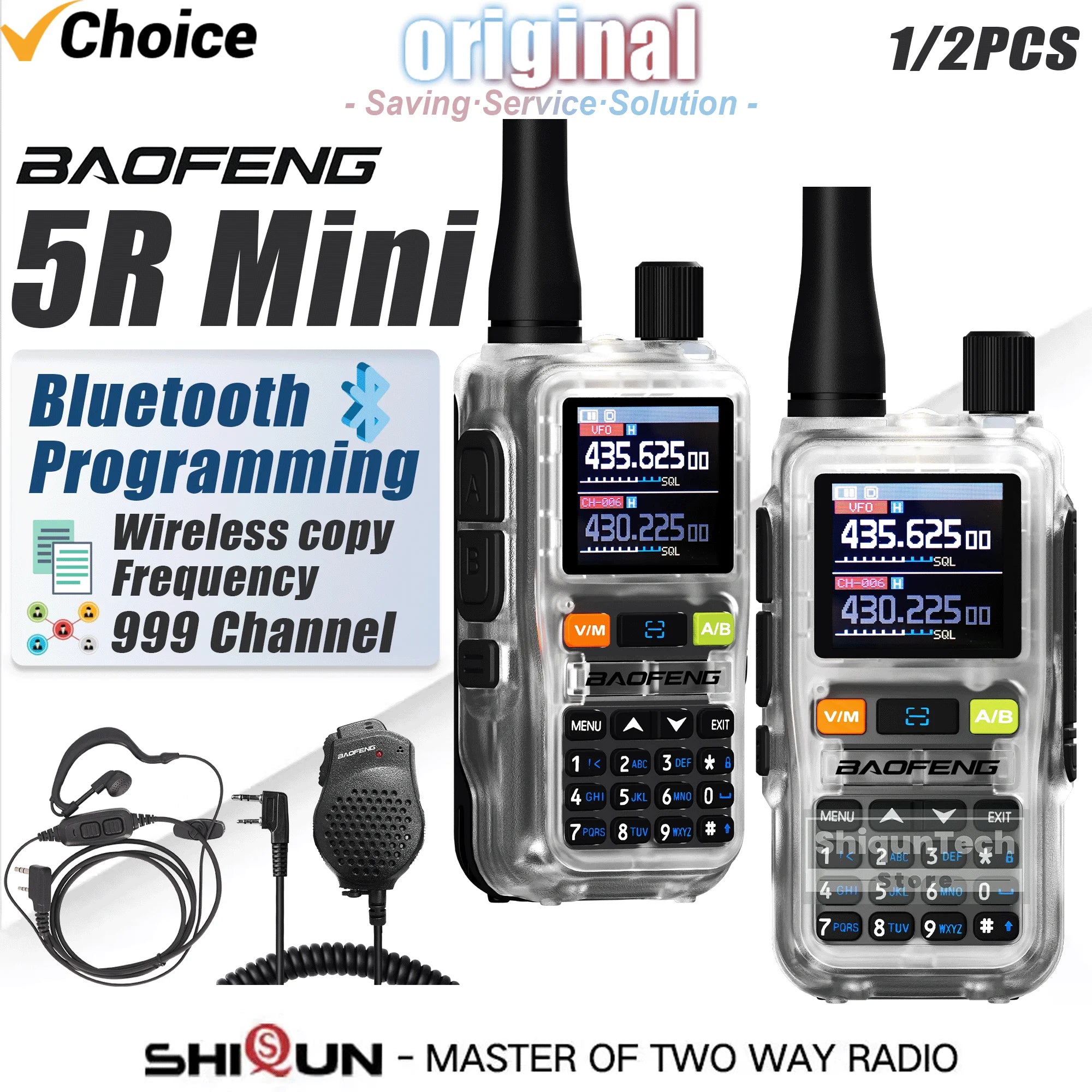

【Bluetooth Programming On Mobile Phones】

5R MINI comes with an advanced Bluetooth frequency programming function.The Bluetooth write frequency feature allows you to customize and adjust frequencies with ease. No more fumbling with cables and complex software installations. Simply pair your device via Bluetooth and effortlessly program the frequencies to suit your specific needs.

【Download Programming Software】

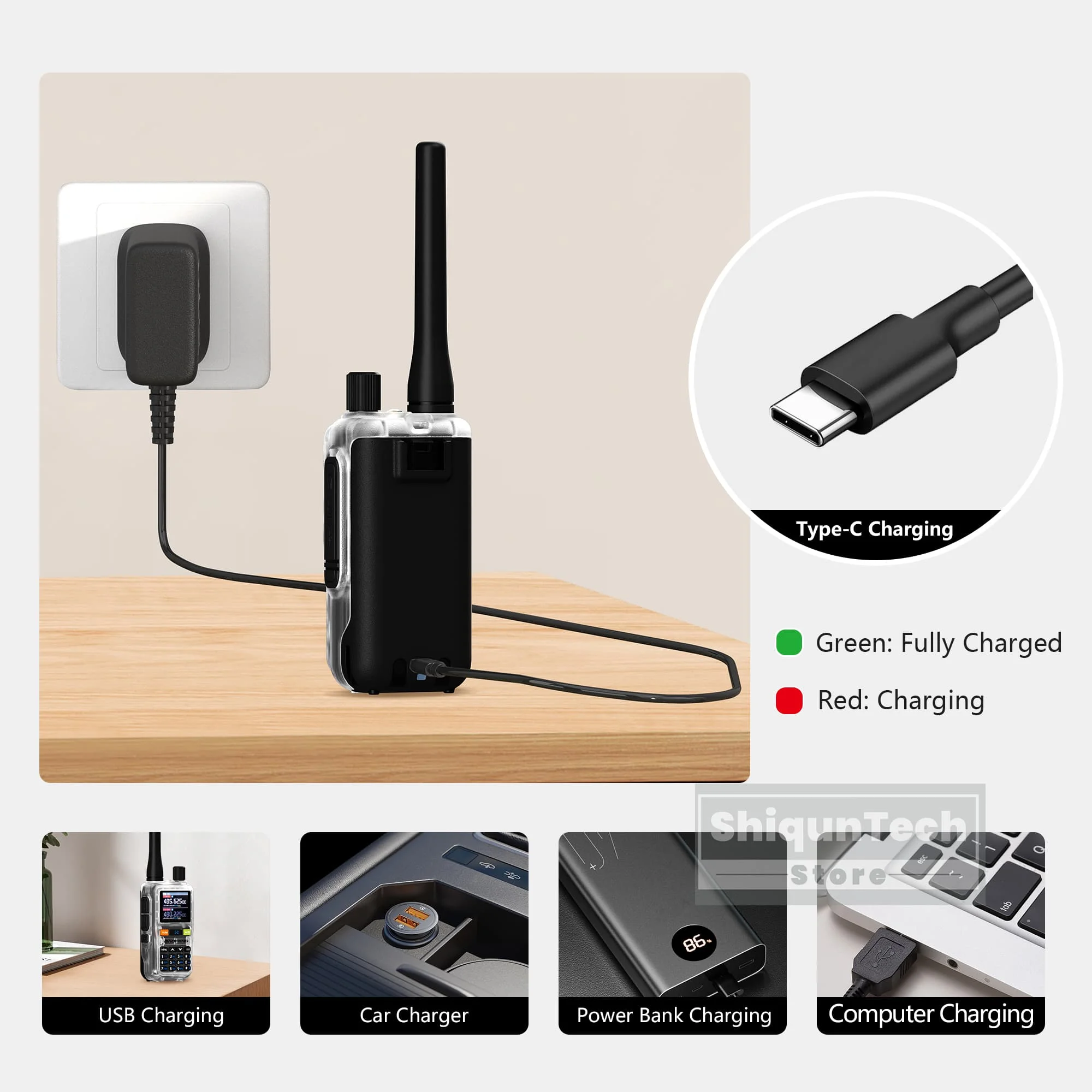

【Type-C Fast Charging】

Type-C charging is a trend for mobile devices as it has low requirements for power sources and places.
The UV-5R MINI radio uses a Type-C charging port, allowing you to charge it in your car like a phone, or easily with a power bank or laptop. Its portability makes it easy to use on your travels.

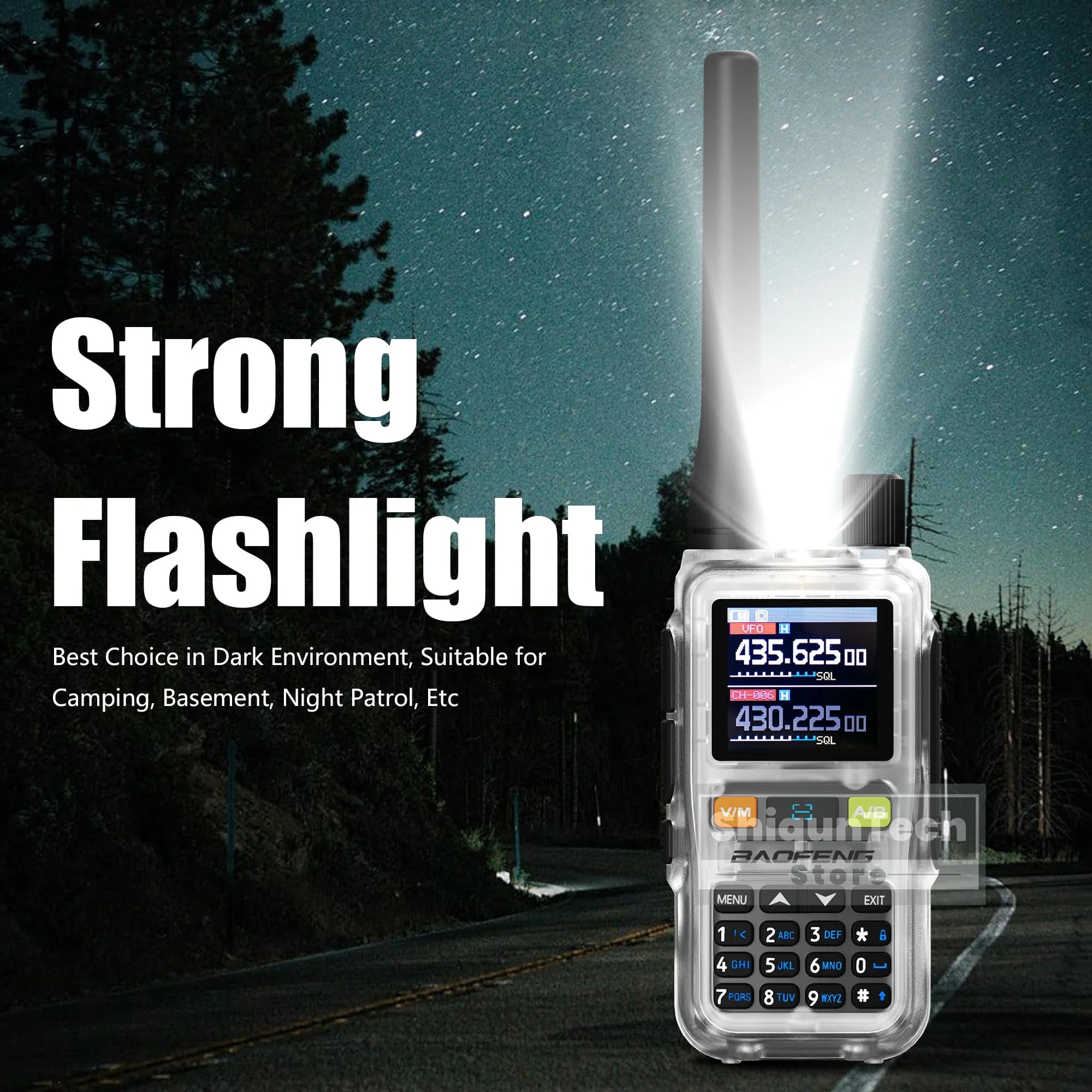

【Strong Flashlight】

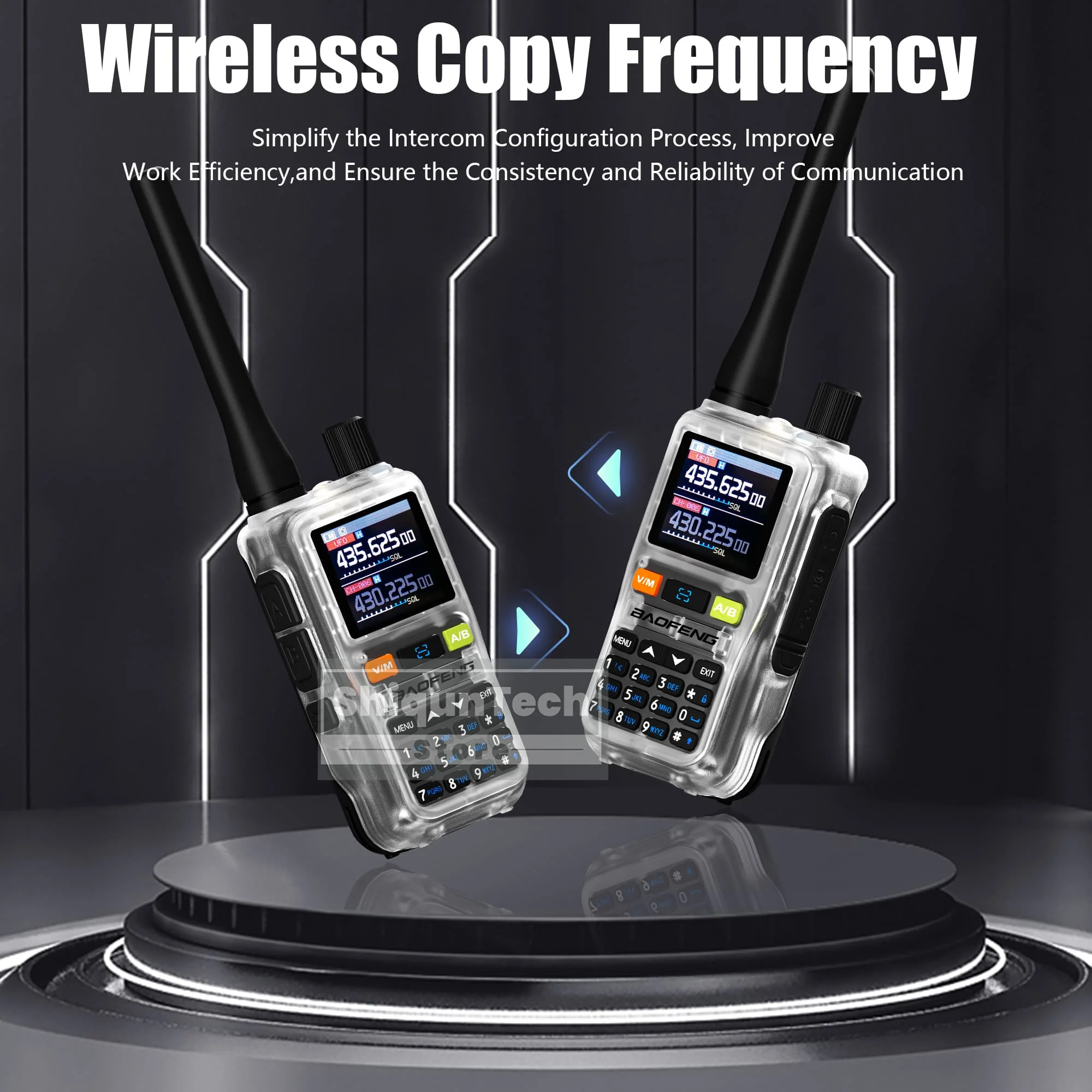

【Wireless Copy Frequency】

Press the button to enter the "Search" interface. Press it again, and the 5r mini will search for other radio transmission frequencies and security codes.
Finally, press the menu button to save the frequency. The two radios can now communicate normally. Calls are smooth and uninterrupted, eliminating the need for traditional frequency programming.

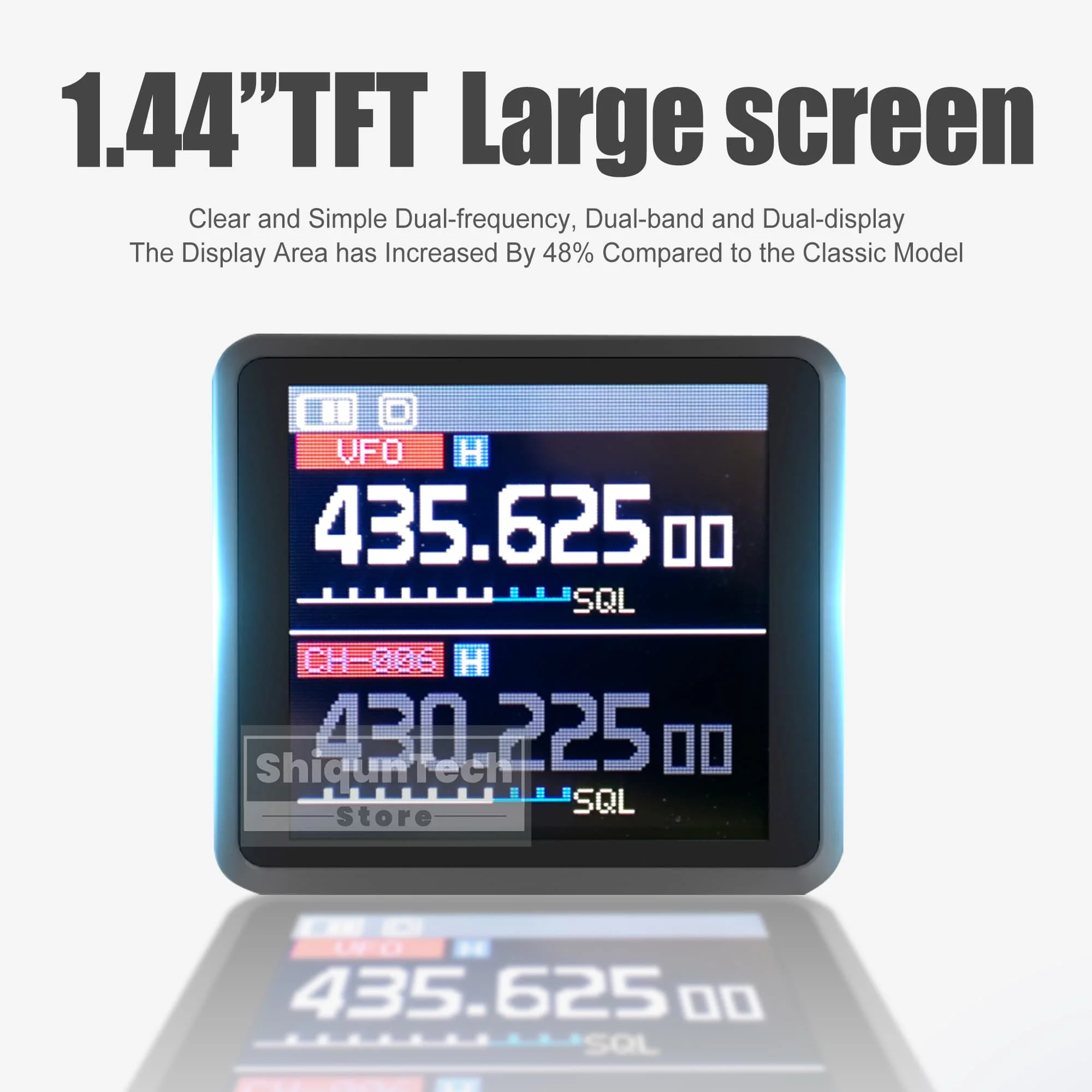

【1.44"Large Screen】
1.44" TFT large screen, full keyboard, fully open menu operation.

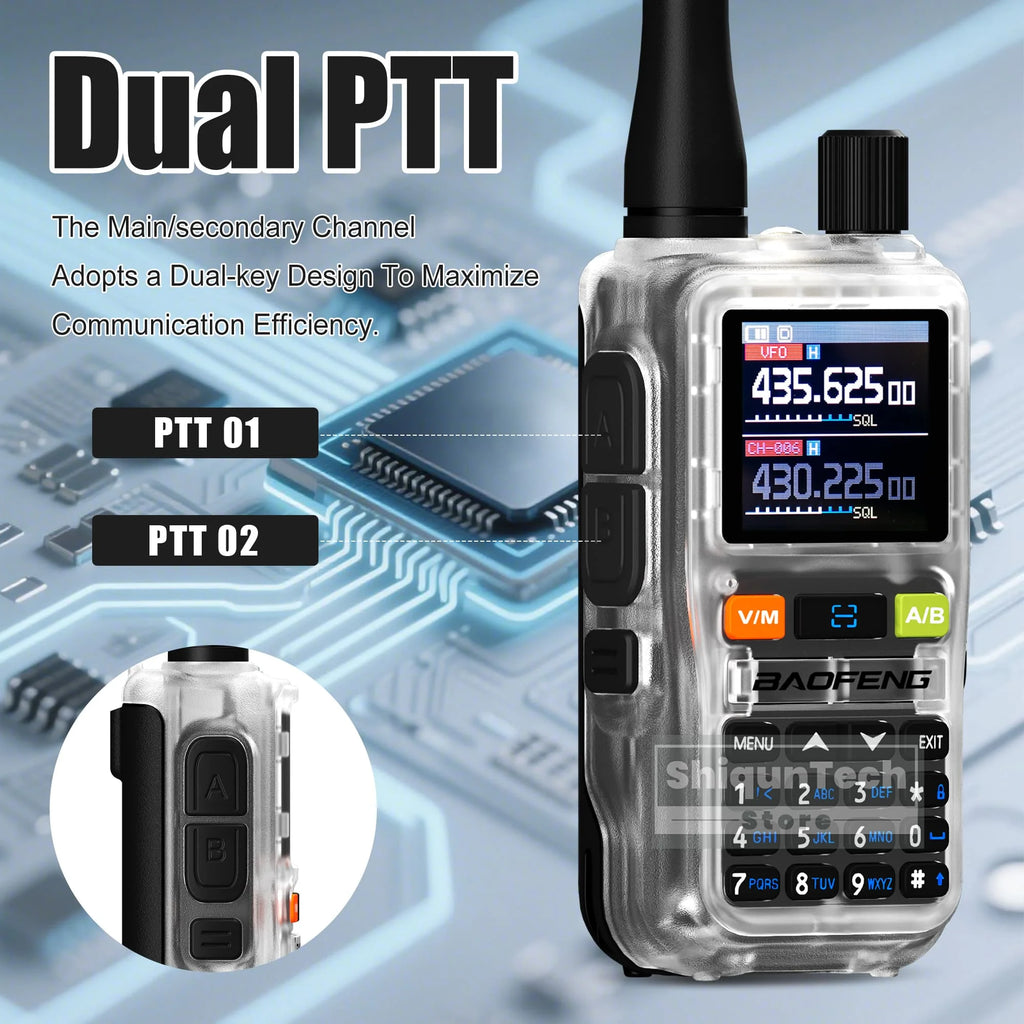

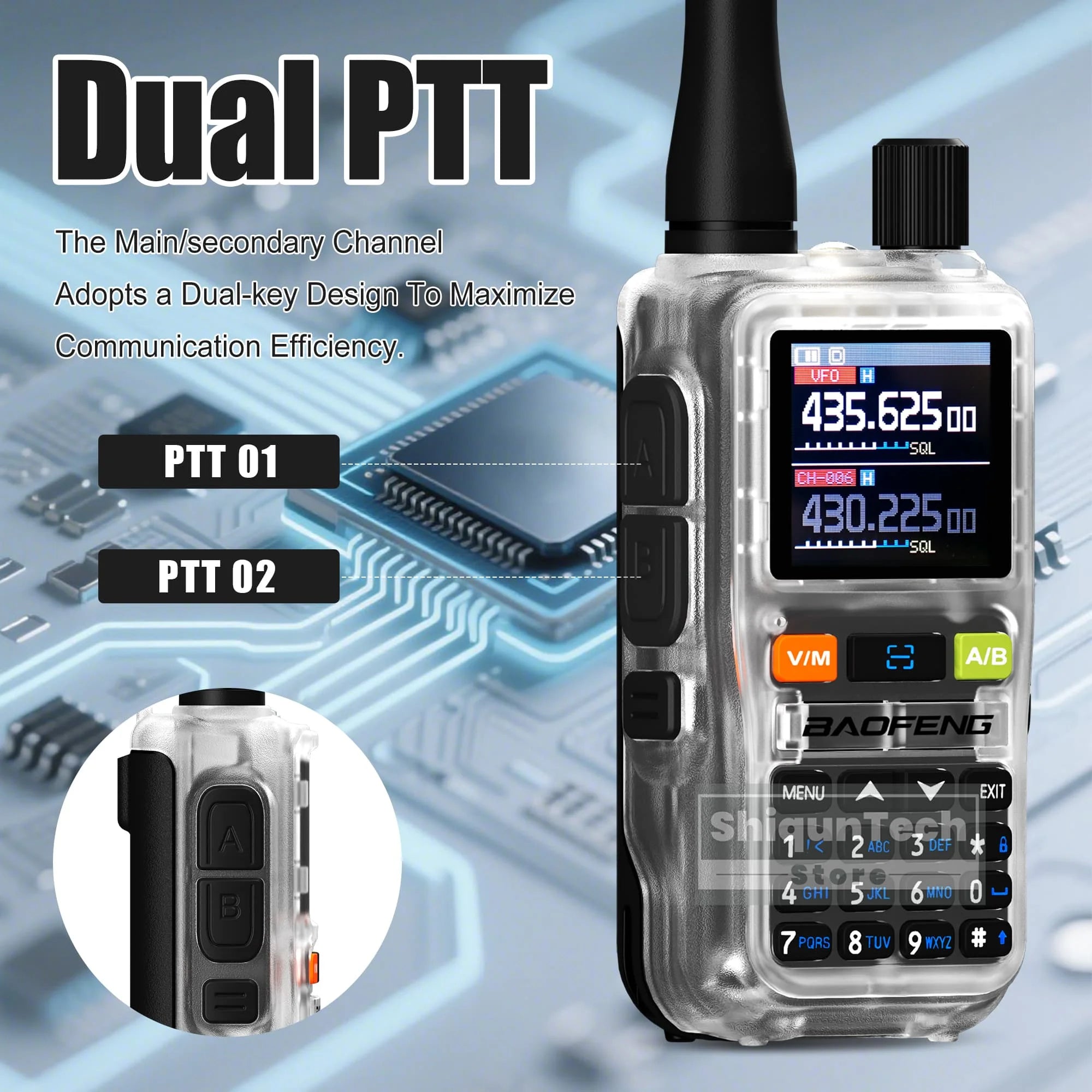

【Dual PTT, Dual display, Dual watch】

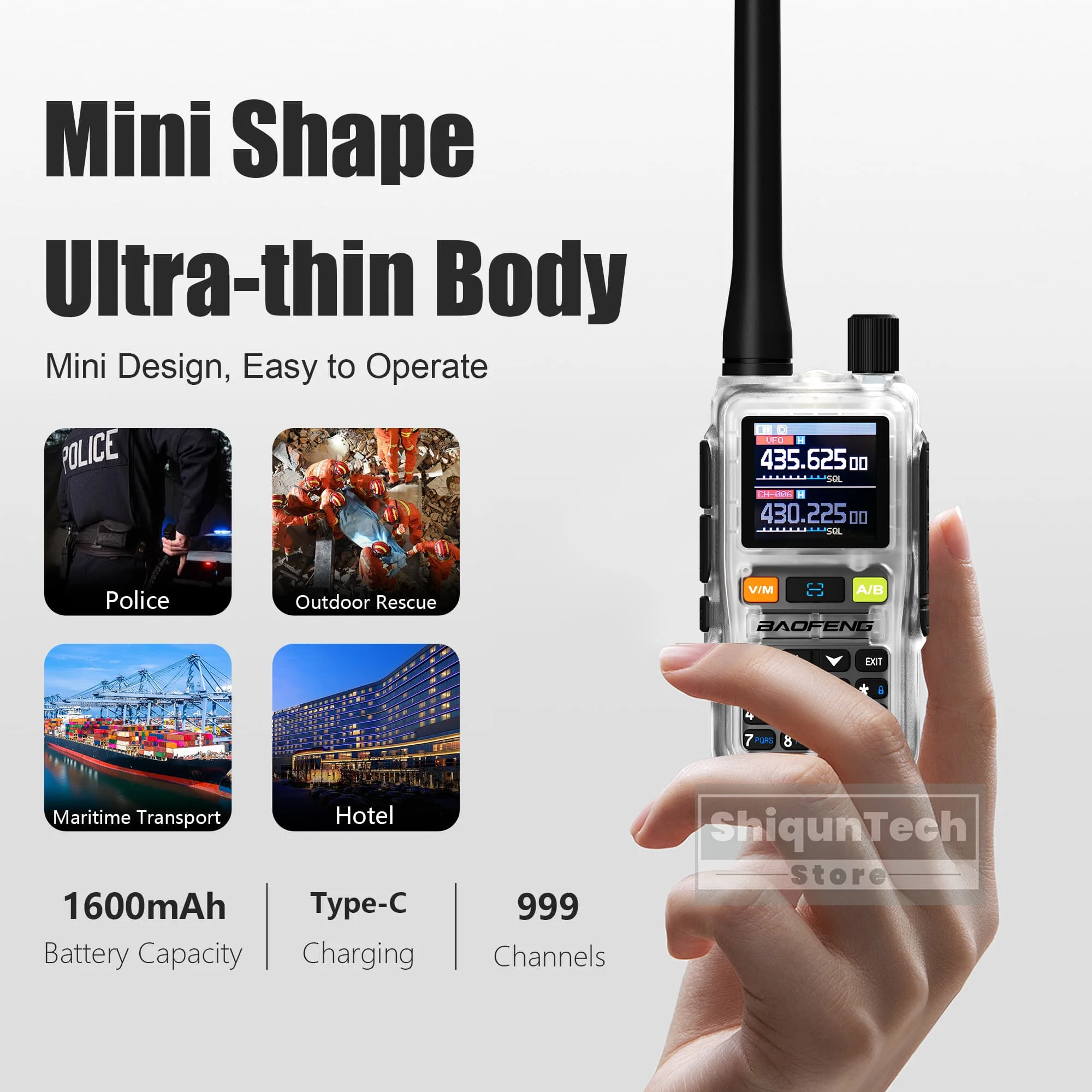

【Mini Radio body, easy to carry】

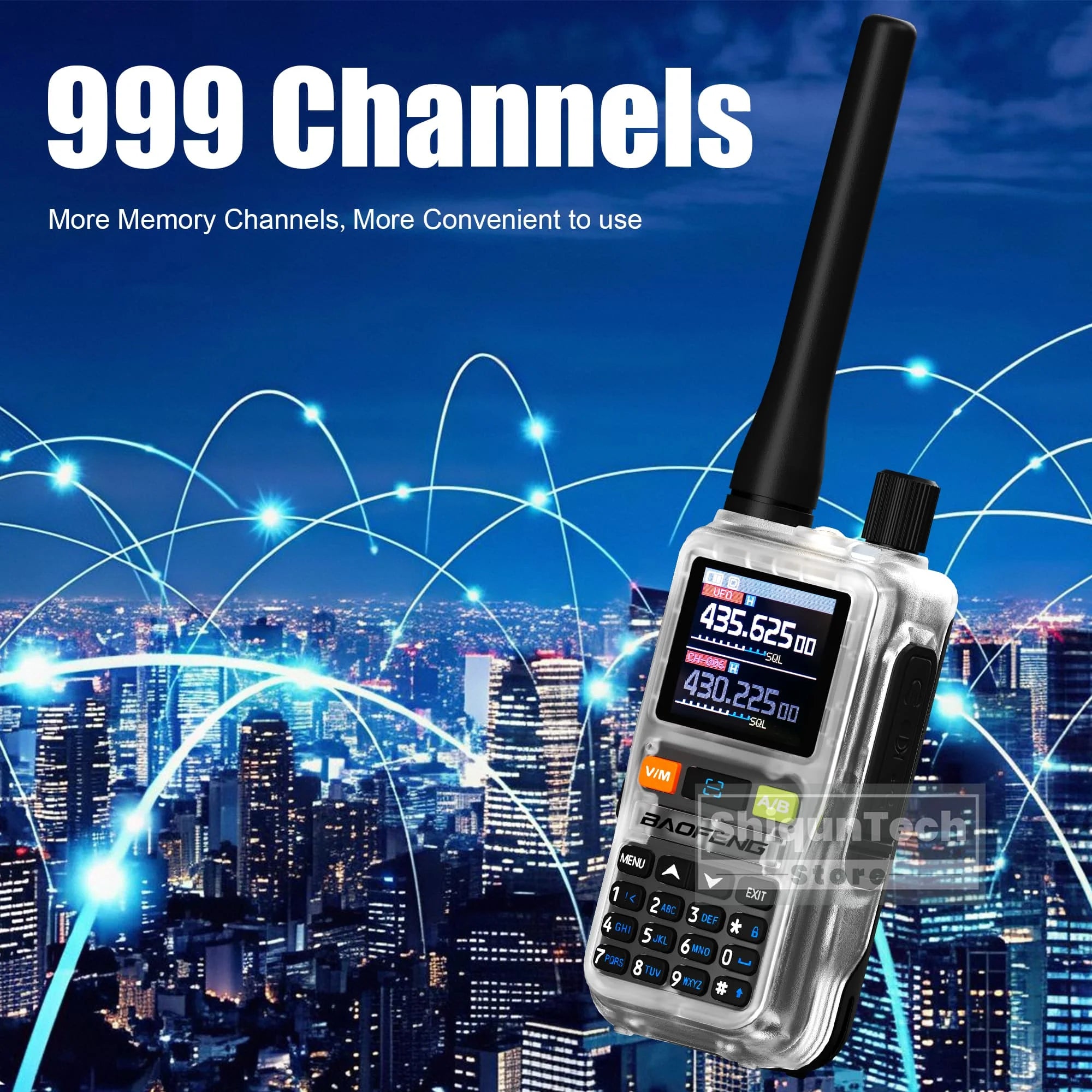

【999Channels】


【Features and Functions】

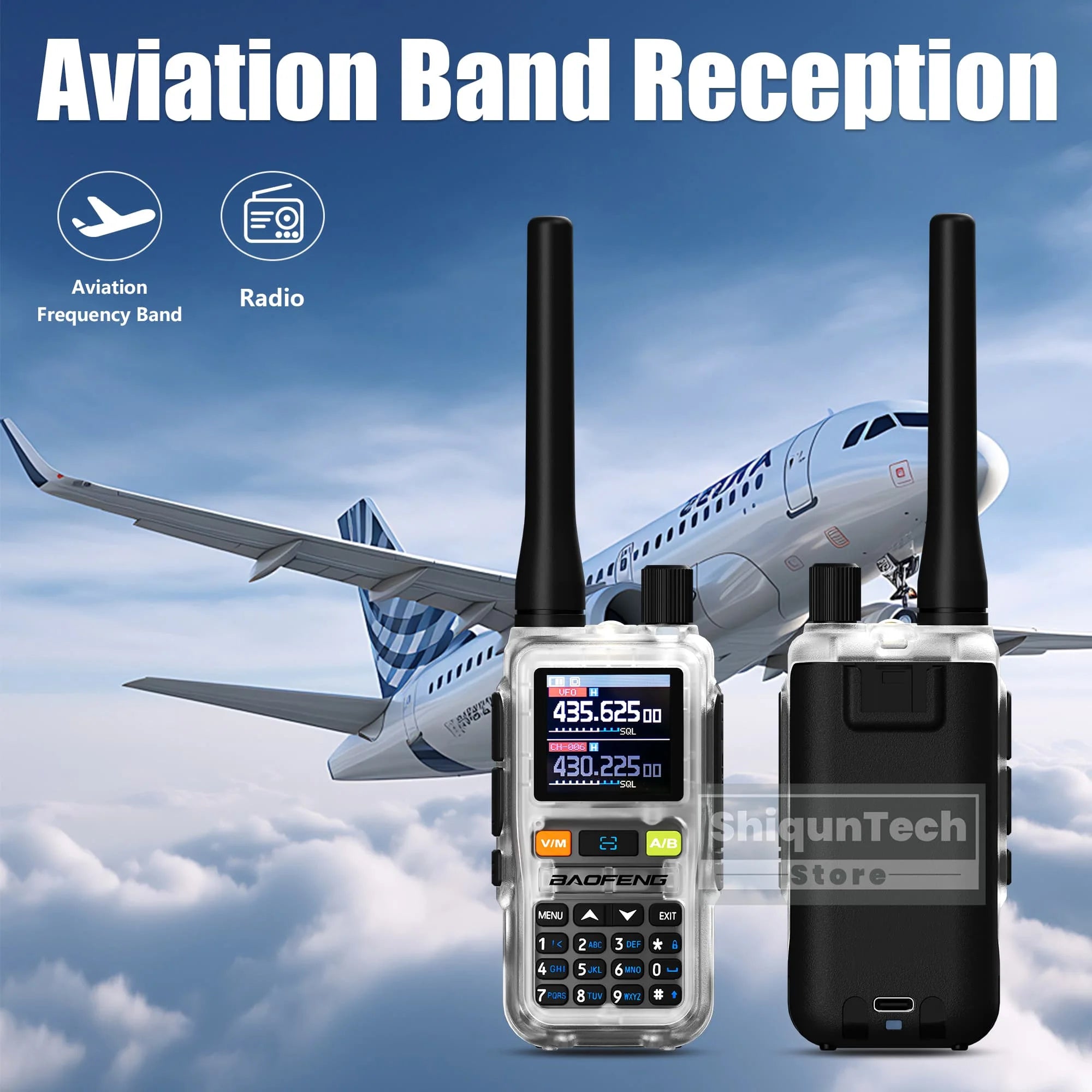

-6 band scan receiver, FM78-108MHZ; AM108-136MHZ; VHF136-174MHz,220-260MHz; UHF400-520MHz,350-390MHz
-Transmit frequency VHF 144-148MHz; UHF420-450MHZ

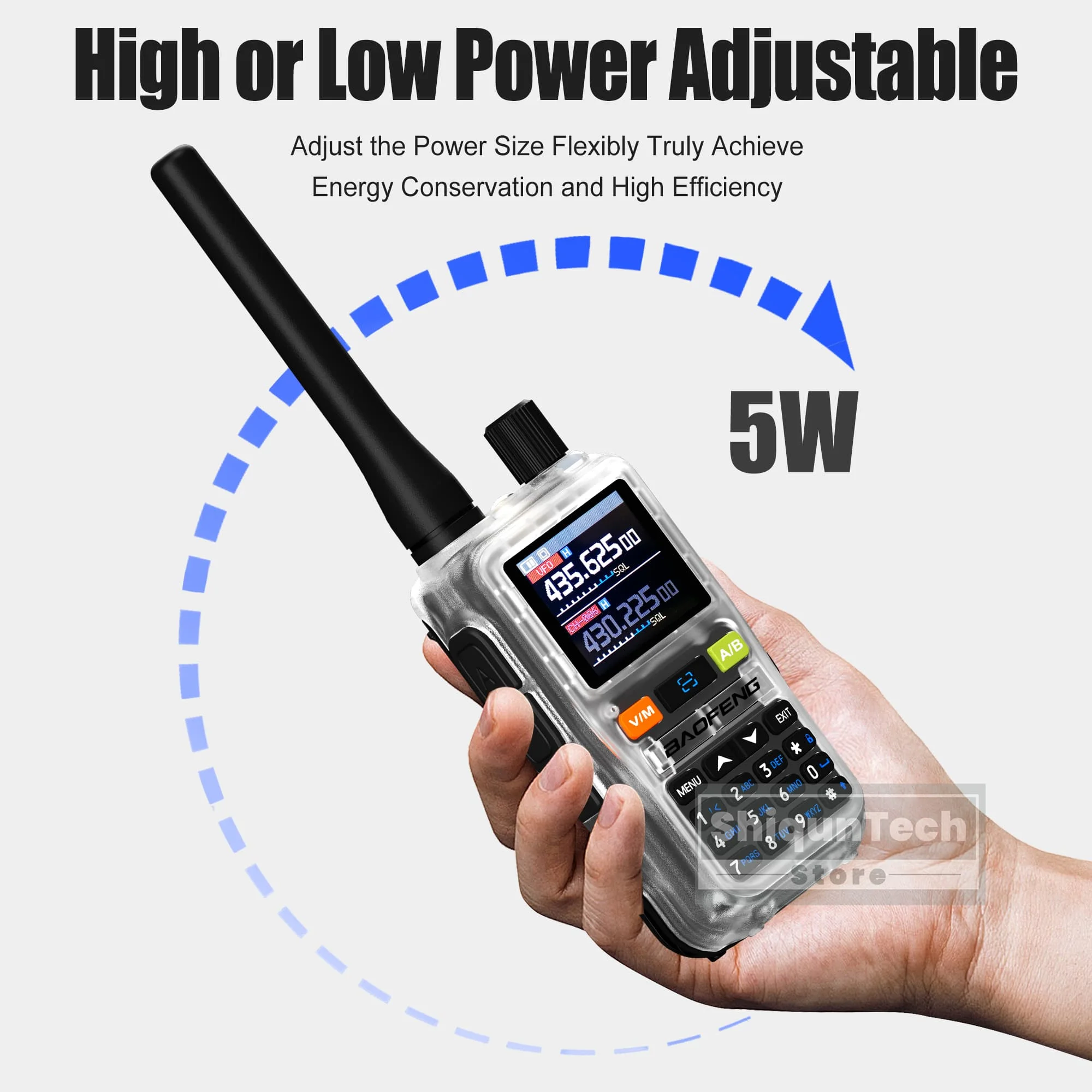

-5W/2W RF output, dual PTT transmitter
-Wireless read/write frequency
-1.44" TFT large screen, full keyboard, full open menu operation, local channel storage and deletion
-Full keyboard manual frequency input, 999 channel memory
-One-click frequency pairing, easy pairing and grouping.
-Relay function settings: frequency difference, frequency difference direction, relay activation audio settings
-Alarm function (three types of alarm settings), to protect your security
-Built-in input method, supports local editing of channel name, receiving frequency, transmitting frequency
-DTMF encoding and decoding function, 20 DTMF calls
-Frequency hopping function
-Side button function customization: radio, scan, sweep, voice control, flashlight, alarm
-FM radio function (receive frequency 78~108MHz)
-Automatic or manual keypad lock, backlight selection
-7.4V_1600mAh rechargeable lithium battery life
-Support Type-C charge, more convenient range

【General】
Receiver Frequency:FM 76-108 MHz;
Transmission Frequency:VHF 136-174MHz, UHF 400-520MHz, 350-390MHz
VHF 144-148MHz, UHF 420-450MHz
Channel Spacing:25.0KHz(Wide)/12.5KHz(Narr)
Memory Channel:999 Groups
Operation Voltage:DC 7.4 V ±10%

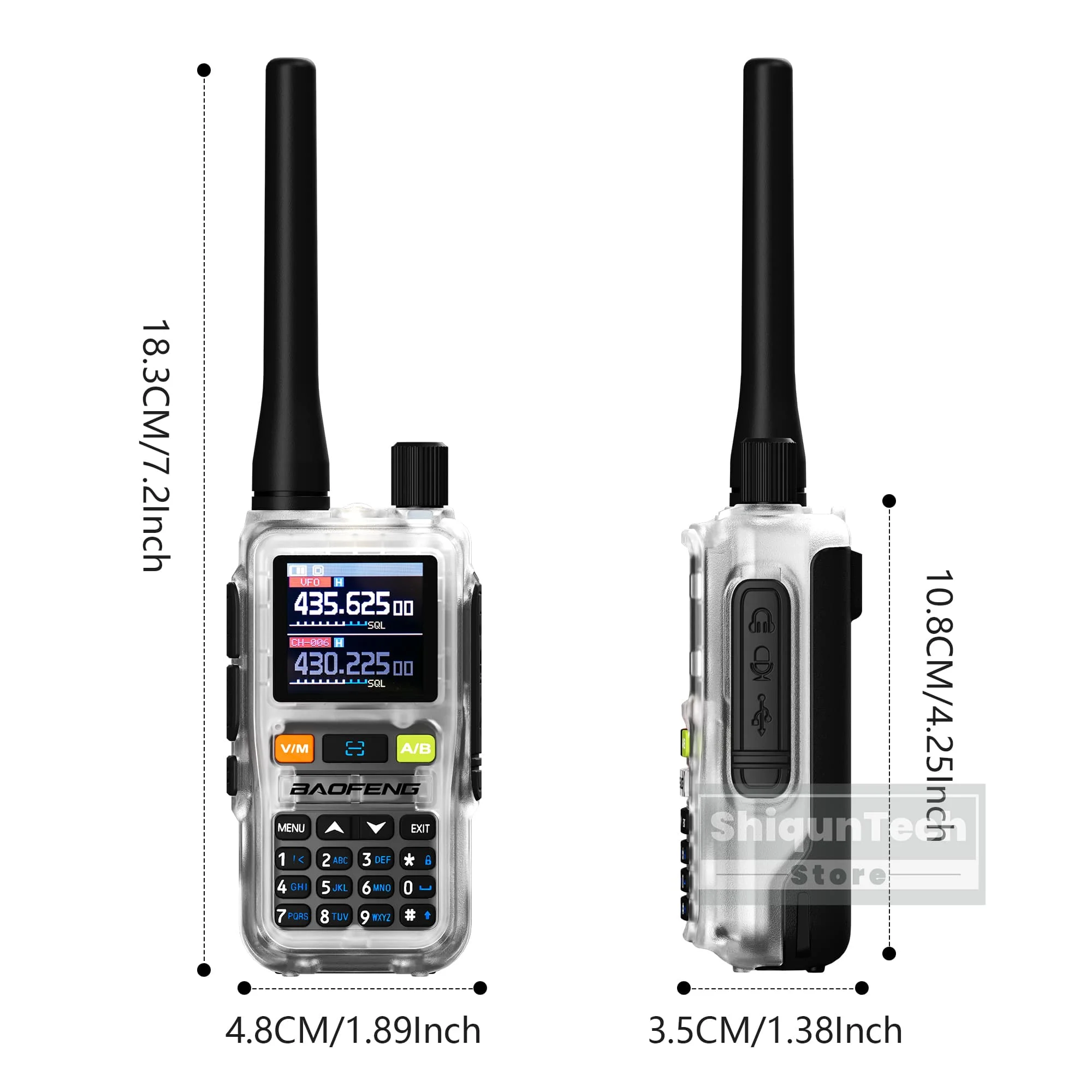

Dimensions:108mmx52mmx37mm (No antenna)

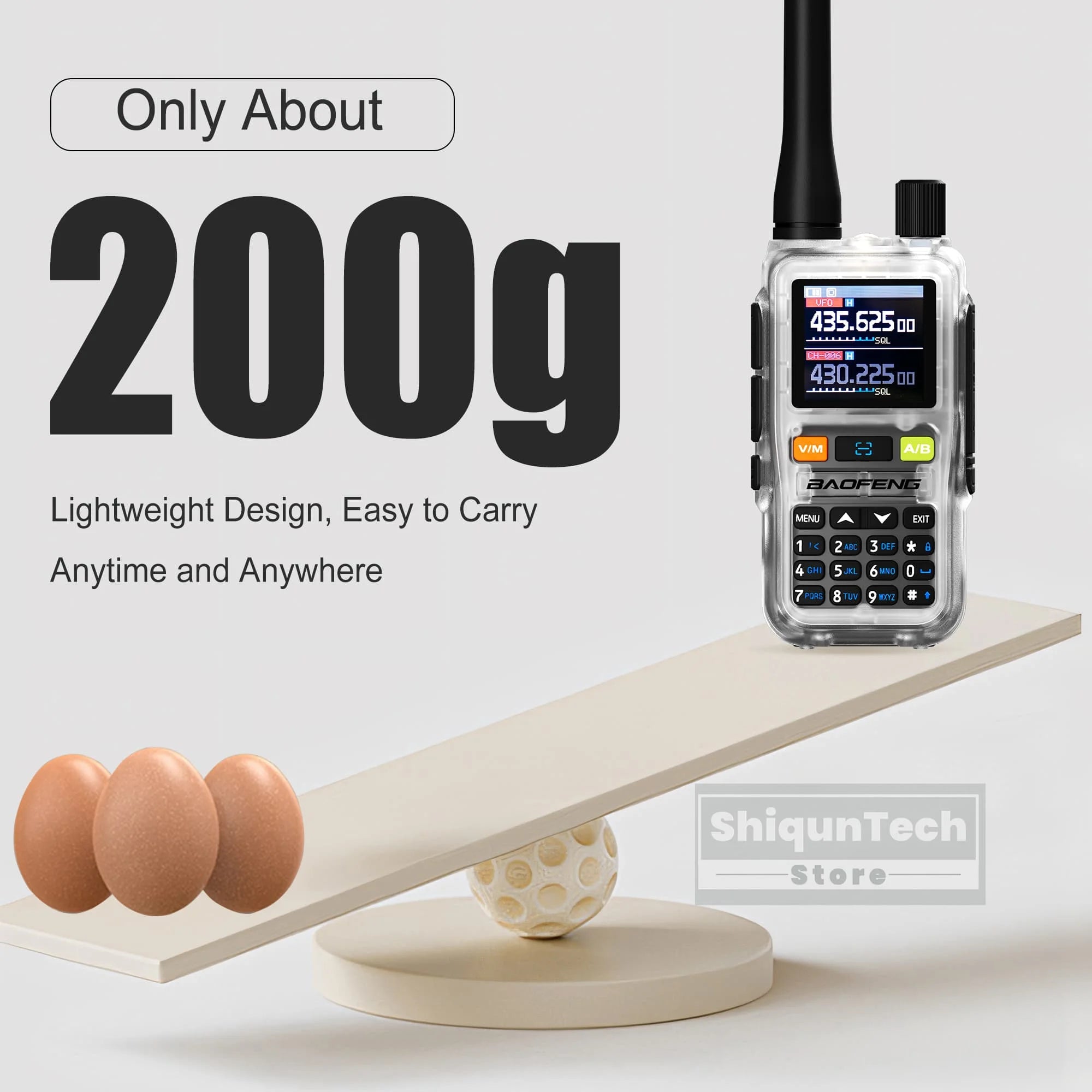

Weight:200g (Battery pack included)
Transmission current:≤1600mA
Receive Sensitivity:0.25uV (12dB SINAD)
Rated Audio Power Output:1W @16 ohms
Receive current:≤380mA
Connection for accessories:2 pin Kenwood jack
Antenna impedance:50 Ohm
NOTE: All specifications may be modified without prior notice or liability. Thank you.

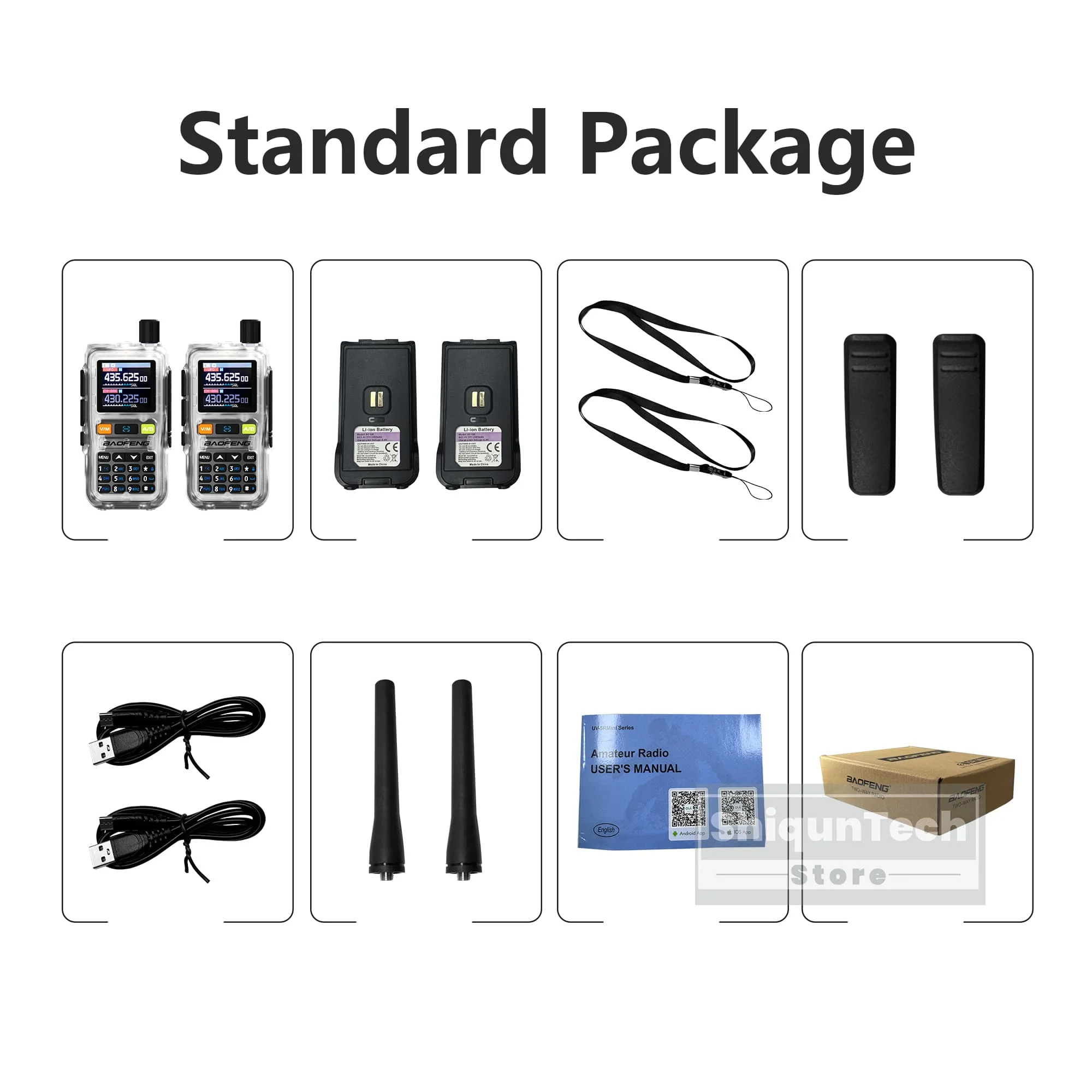

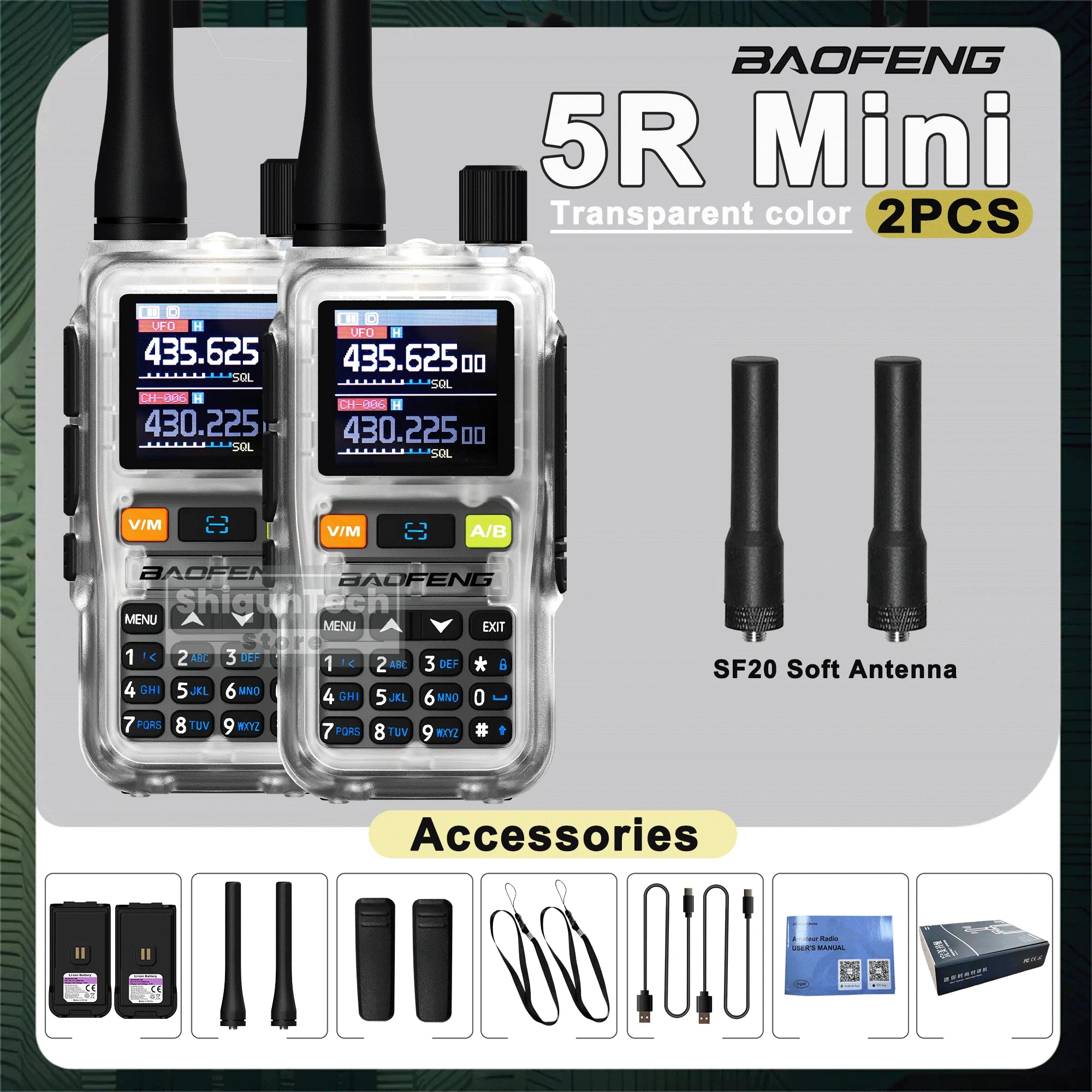

Package Included:
1x Radio
1x Antenna
1x battery
1x USB Type-C Charger Cable
1x Lanyard
1x Belt Clip
1x User manual
1x Box
Or
2x Radio
2x Antenna
2x battery
2x USB Type-C Charger Cable
2x Lanyard
2x Belt Clip
1x User manual
1x Box

Note:We will ship according to your order! If you have any questions after receiving the goods, please feel free to contact us.
