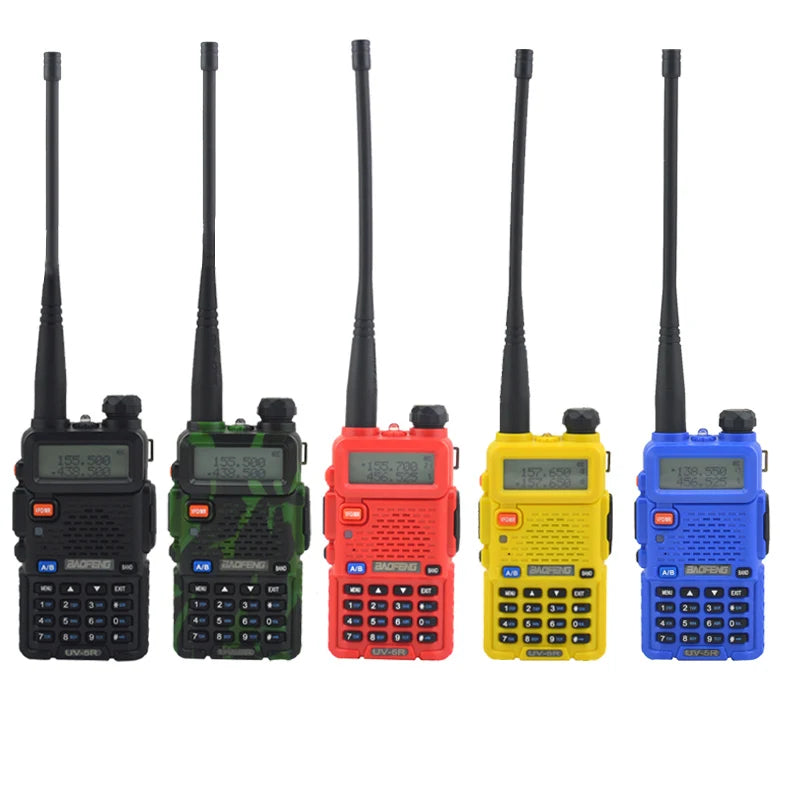

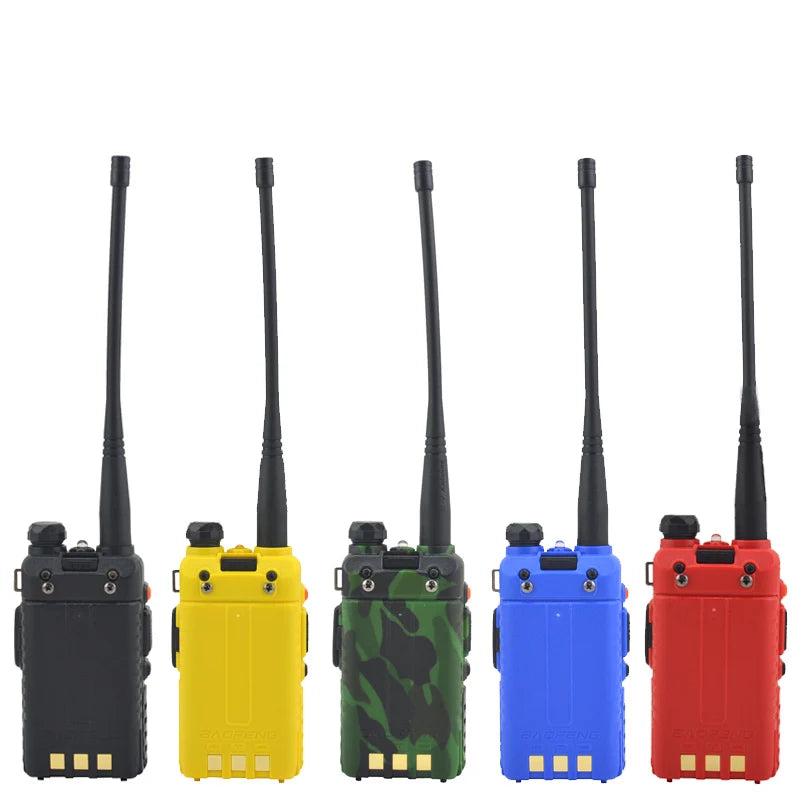

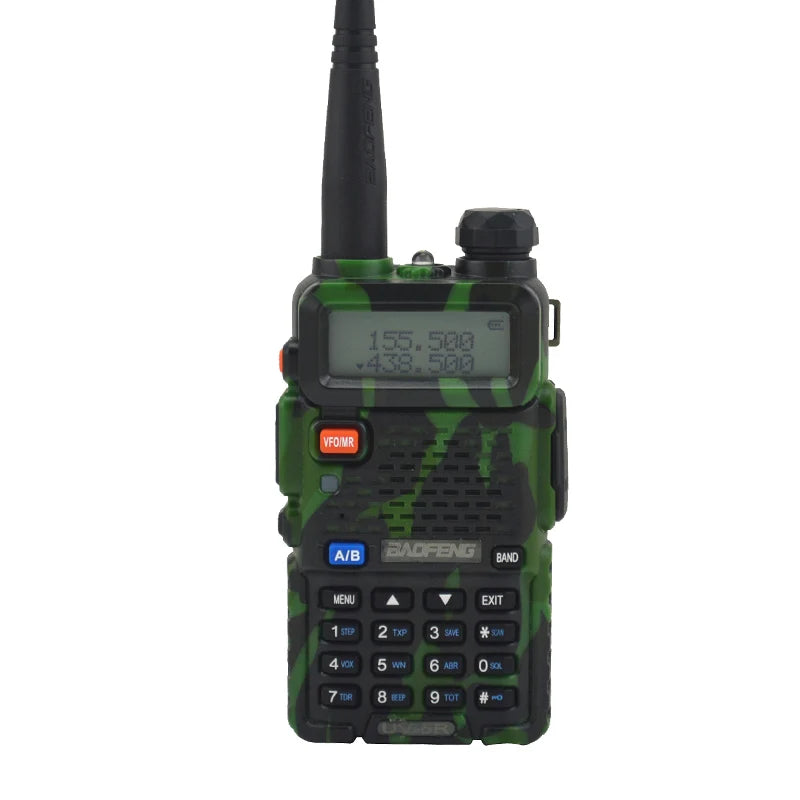

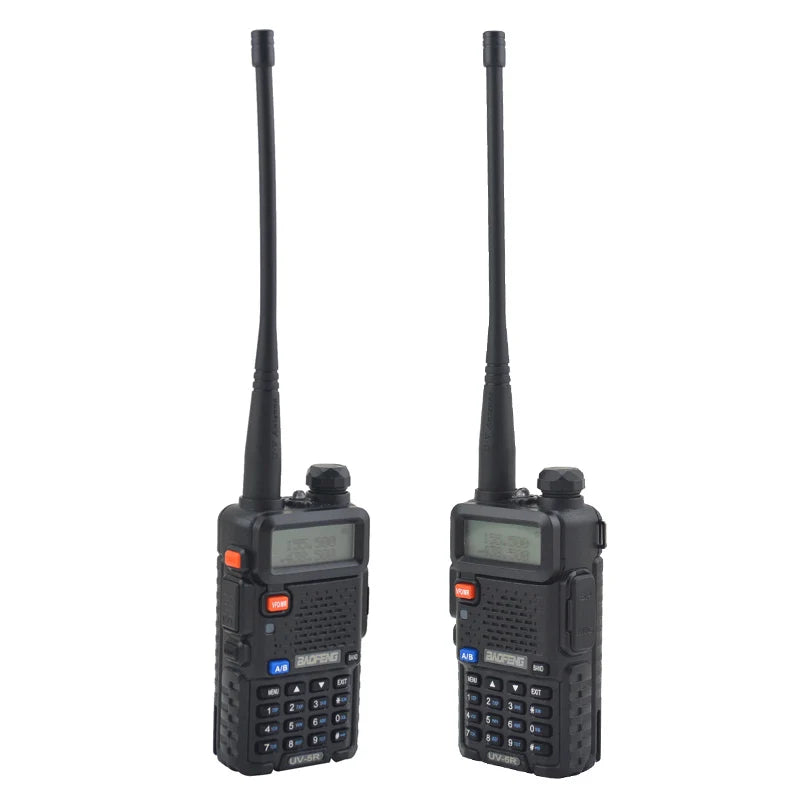

BAOFENG UV-5R Dual Band VHF/UHF 136-174MHz & 400-520MHz FM Portable Two way radio handheld Walkie talkie 5r BF-UV5R

Camouflage / US

€46,99

€46,99 €155,99

BAOFENG UV-5R Dual Band VHF/UHF 136-174MHz & 400-520MHz FM Portable Two way radio handheld Walkie talkie 5r BF-UV5R

€46,99

€46,99 €155,99

Color Camouflage Red Blue Black Yellow

Plug standard US EURO BRITISH

SPECIFICATIONS

Battery Capacity(mAh): 1800

Battery Included: Yes

Battery Type: DC 7.4V Li-ion 1800mAh

Brand Name: BAOFENG

Channel Spacing: 2.5/5/6.25/10/12.5/20/25KHz

Dimensions: 109.5x 59.5x 34.3mm

Frequency Range: Dual Band 136-174MHz & 400-520MHz

Is_Display: Yes

Material: Plastic

Maximum Range: 3km-5km

Model Number: UV-5R

Origin: Mainland China

Output Power: 5W/1W

Output Power(w): 3w-5w

Storage Channel: 128

Use: Outdoor

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: No

Weight: Approx.225g

Dual Band baofeng walkie Talkie UV-5R VHF/UHF 136-174MHz & 400-520MHz FM Portable Two way radio BF-UV5R With Earpieces (Five color available for Option)

by baofeng

Features and specifications:

Features:
Frequency Range:136-174 & 400-520MHz
Dual band, dual display
A/B band independent operation
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable
0~9 grades VOX selectable
PTT & ANI ID
FM radio and 25 stations storage
1750Hz Brust Tone
Time-out Timer
Channel Monitor
Battery Saver
Keypad Lock
Channel Step: 2.5/5/6.25/10/12.5/25KHz
Low Battery Alert
ROGER SET
Emergency Alert
25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz)
Large LCD Display
LED Flashlight
Hight /Low RF Power Switchable
Voice companding
50 CTCSS/ 104DCS coder & tone searching
PC programmable
Wide/Narrow Band(25kHz/12.5kHz) Transmitter
High/Low TX power selectable
Busy channel lock-out(BCLO)

Specifications

General
Frequency Range: 65-108MHz(FM Receive only)
136-174MHZ and 400-520MHZ (TX/RX)
Channel No.:128
Frequency Stability: ±2.5ppm
Antenna: High gain DualBand antenna
Antenna Impedance: 50Ω
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension(W x H x D): 100 x 52 x 32 mm
Weight: 250g(including battery, antenna)
Antenna : : SMA -Female
Earpiece / mic type: Kenwood Plug type

Transmitter
Output power: 5W / 1W (Max 5W)
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation: 7μW
Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: ≤1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ≤10%
Package Contain:
1× UV-5R (VHF136-174 & UHF 400-520Mhz)

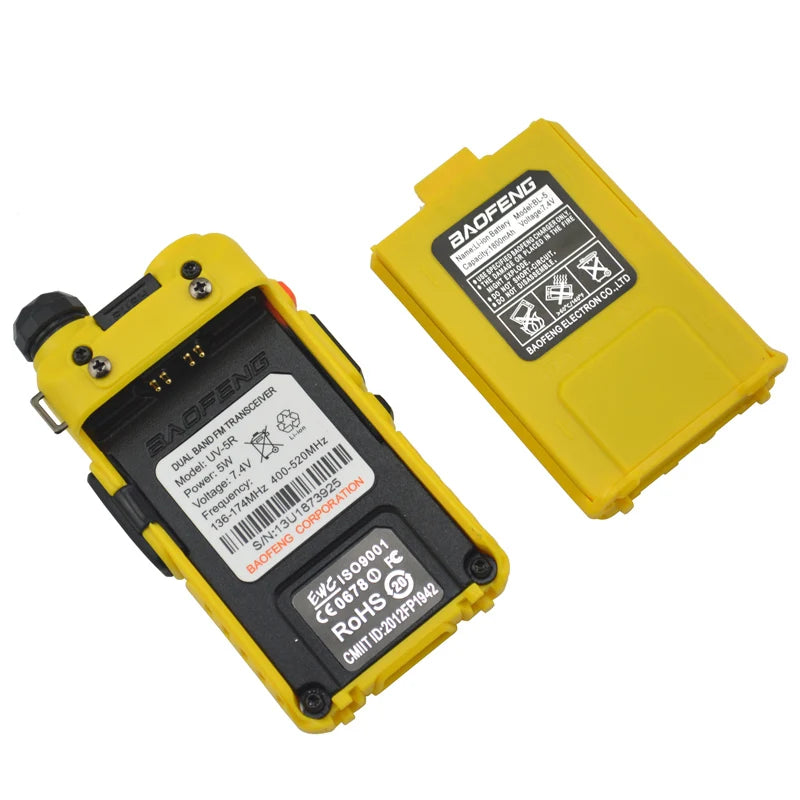

1× 7.4V 1800mah Li-ion Battery Pack
1× Dual Band Antenna
1× Belt Clip
1× ENG Manual

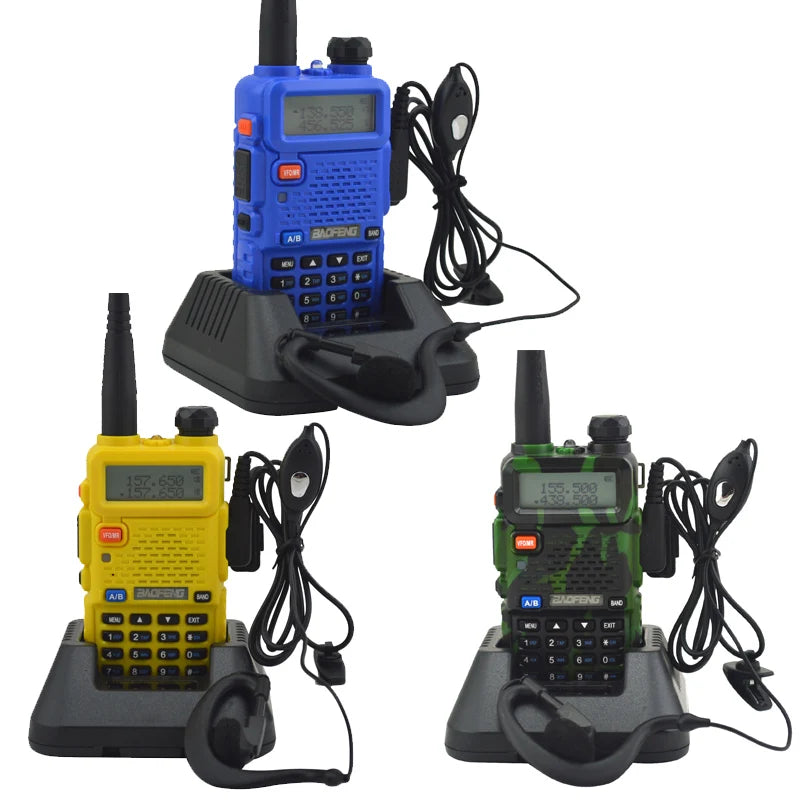

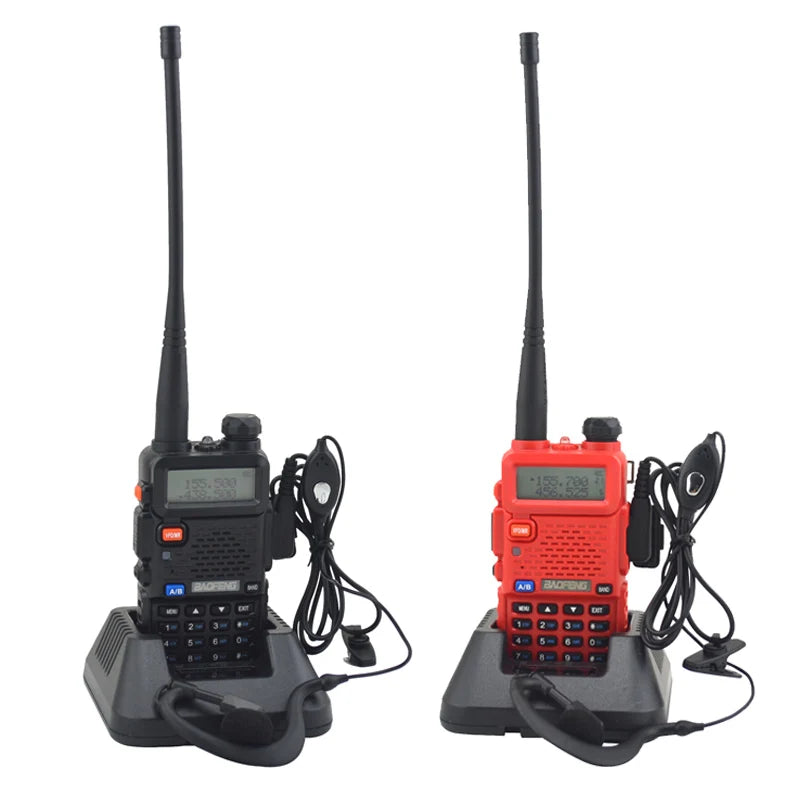

1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1× Earpiece
1× Handstrap
